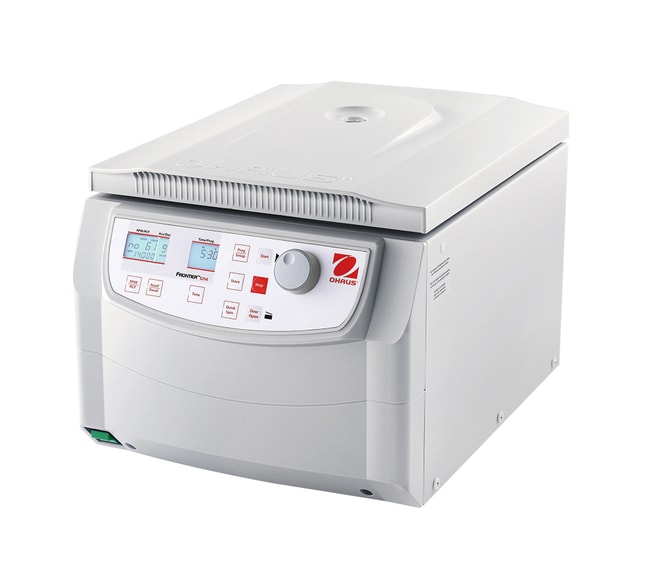

OHAUS™ Frontier™ 5714 Multi-Pro Centrifuges

Designed for applications within research, industrial, and clinical laboratories. The FC5714 is able to spin 0.2 mL to 4 x 200 mL with swing-out and fixed angle rotors and different sizes of blood collection tubes, conical cell culture tubes, plates, and various bottles.

Overview
2584.11 EUR valid until 2025-12-31
Use promo code "24333" to get your promotional price.


Additional Details:
Additional Details: Weight: 30.00000kg



Product Code. 15816762

Quantity Price
1 3080.0  € / Each
In stock, ready to ship: 32
Add to basket


  • Description and Specification
  • Accessories and Spare Parts
Description and Specification

Specification

Capacity 4 x 100 mL
Max. Speed 14,000 rpm
Max. RCF 18,624 x g
Refrigerated No
Control Speed 200 to 14000 rpm
Display LCD with Backlight
Height (English) Exterior 12.99 in.
Height (Metric) Exterior 330 mm
Length (English) Exterior 19.41 in.
Length (Metric) Exterior 493 mm
Memory 99 Programs
Noise Level ≤63±2 dBA
Safety Features CE, FCC
Width (English) Exterior 14.25 in.
Width (Metric) Exterior 362 mm
Wattage 240 W
Certifications/Compliance CE, FCC
Type Centrifuge
Description Centrifuge, Multi, 230V, FC5714
Dimensions (L x W x H) Exterior 493 x 362 x 330 mm
Electrical Requirements AC Power (Included)
Depth (English) 19.41 in.
Depth (Metric) 493 mm
Maximum Speed Range 200 to 14000 rpm
Rotor Included No
Dimensions (HWD) 330 x 362 x 493 mm
Net Weight 28 kg
Run Time 10 sec. to 99 hr. 59 min. 59 sec., Continous, Quickspin
Product Line Frontier 5000 Series Multi Pro
Voltage 230 V
Model FC5714

Designed for maximum application flexibility

  • Designed to efficiently accommodate a wide variety of tubes and bottles, including microtubes, blood tubes, round bottom tubes, conical tubes, and microliter plates, ensuring versatile and reliable performance for diverse laboratory
  • Compatible with up to 10 optional rotors and 95 accessories
  • Capacity of up to 4 x 200 mL with the ability to spin up to 32 blood tubes or 20 x 15 mL conical tubes and 8 x 50 mL conical tubes
  • High-speed centrifugation (>10 000 rpm) from 0.2 mL up to 1.5/2.0 mL tubes

Intuitively Designed for Simple Operation

  • Designed to make lab processes more efficient and easier, and includes many user friendly features and software that allow for intuitive operation
  • Automatic rotor recognition (RFID) makes switching between applications extremely easy
  • Simple one-hand operation enabled by the selection button/rotary knob combination, even when wearing gloves
  • Large backlit LCD display shows centrifugation settings and real-time parameters on one interface
  • Program storage up to 99 runs including parameter settings and rotor types

Solid Engineering Ensures Reliability

  • Manufactured with high-quality components for reliable use and German engineered for high performance
  • Maintenance-free induction motor provices maximum G-force of 18264 x
  • Optimized airflow system to keep samples cool
  • Chemical and corrosion-resistant stainless steel rotor chamber ensures durability in lab environments
  • Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime

Safety Features for Increased Security

  • Equipped with protective features for redundancy in safety and reliable operation
  • Over-speed protection, immediately upon rotor insertion
  • Active imbalance-detection with individual imbalance tolerances set for each rotor
  • Motorized lid-locking system to protect operators from accidental injuries
  • Sealed and bio-containment rotors to safeguard operators from harmful aerosols
